Diaphragm Seals

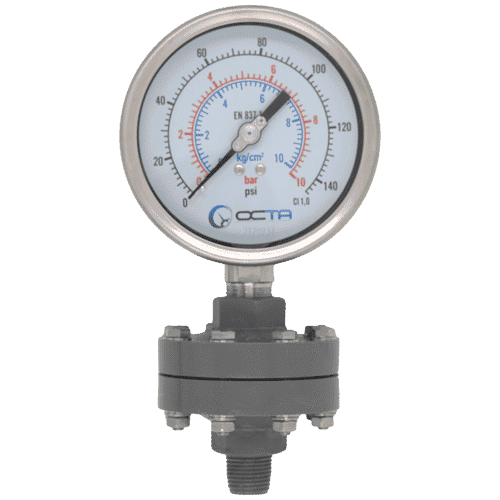

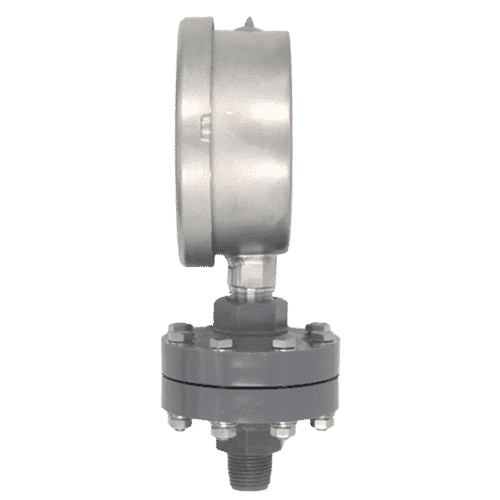

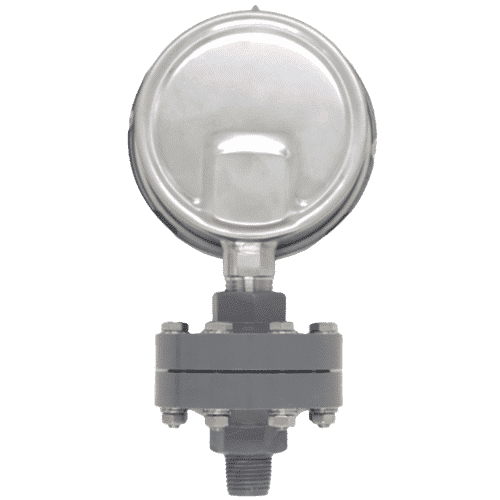

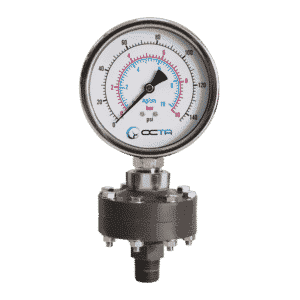

Diaphragm Seals Model : DS-PVC

Specifications

Instrument connection :  NPT 1/2′ Female

Process connection : NPT 1/2″ Male

Process temperature maximum : 60 deg C

Pressure rating maximum : 10 bar

Material Body : PVC

Diaphragm : PTFE

Application

• Provides an economical solution to protect instruments from corrosion and clogging
• Used to isolate and protect a pressure instrument on ultra-pure or highly corrosive fluid lines
• Can be used with liquids such as demineralized water, sulphuric acid, hydrochloric acid and caustic gases (such as corrosive air and ammonia), where such fluids will corrode metal instruments
• Review of chemical compatibility is available upon request

ซื้อ Diaphragm Seals แล้วประกอบเข้ากับเกจวัดแรงดันได้เลยมั้ย ?
